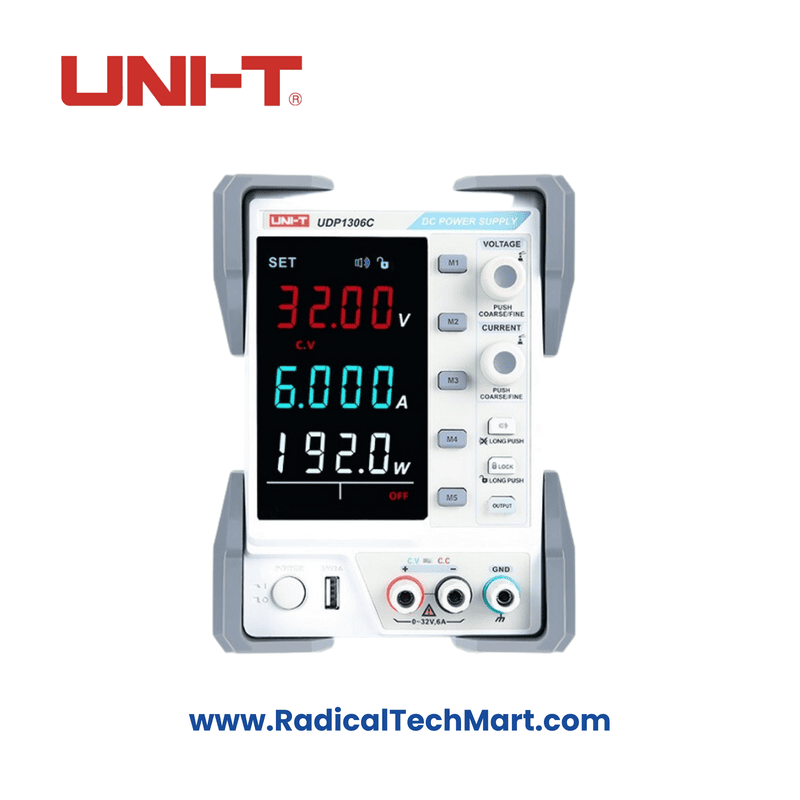

UNI-T UDP1306C Industrial Linear DC Power Supply

The UDP1306C Industrial Linear DC Power Supply is designed to deliver reliable and high-performance power to various applications. Here are its key features and specifications:

1. Dual Outputs:

   • The power supply features two independent output channels:
     • Adjustable output: 0-32V, 0-6A with constant voltage (CV) and constant current (CC) modes.
     • Fixed output: 5V, 2A with built-in short circuit and overvoltage protection.

2. Precision Display:

   • Equipped with a 4-digit high-precision display for voltage and current readouts.
   • Voltage resolution: 10mV
   • Current resolution: 1mA

3. Protection Features:

   • Overvoltage protection (OVP)
   • Overcurrent protection (OCP)
   • Overtemperature protection (OTP)

4. Remote Control:

   • Allows remote control of output ON/OFF.
   • Features shutdown memory and keypad lock for added security.

5. Cooling System:

   • Intelligent cooling fan for efficient heat management.

6. Communication and Charging:

   • USB charging interface (5V/2A) for device charging.
   • RS232 program-controlled communication for remote operation.
   • USB device communication for data transfer.

7. Data Storage:

   • Capable of storing up to 5 sets of data for quick access.

8. Performance and Accuracy:

   • Load regulation: Voltage ≤0.01% + 5mV, Current ≤0.1% + 10mA.
   • Power regulation: Voltage ≤0.01% + 3mV, Current ≤0.1% + 3mA.
   • Setting accuracy at 25°C ±5°C: Voltage ≤0.5% + 20mV, Current ≤0.5% + 10mA.
   • Ripple and noise (20Hz to 20MHz): Voltage ≤2mVrms, Current ≤3mArms.
   • Temperature coefficient for both current and voltage: ≤300ppm/°C.
   • Voltage rising/falling time delay: ≤100ms (10% rated load).

9. Physical Specifications:

   • Product size: 136mm x 194mm x 327mm.
   • Standard individual packing: Carton box.
   • Standard quantity per carton: 1 unit.
   • Carton dimensions: 505mm x 270mm x 335mm.
   • Gross weight per carton: 9.6kg.

10. Warranty:

    • Comes with a 1-year warranty from UNI-T.

The UDP1306C is a versatile and durable power supply suitable for a variety of industrial and laboratory applications.
